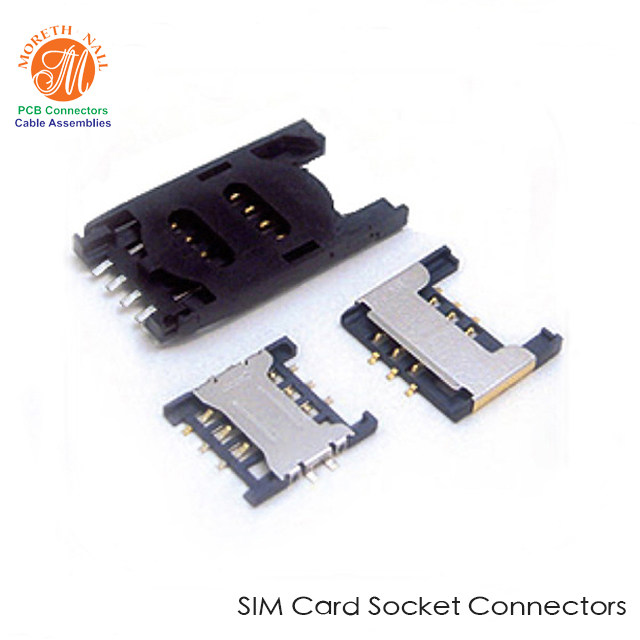

SIM Card Socket Connectors, made from LCP UL 94V-0, high-quality Au (gold) plating, voltage of AC 500V for 1 minute

Our SIM Card Socket Connectors are designed to provide reliable and durable performance for various electronic applications. The housing is made from LCP UL 94V-0 in black, ensuring excellent heat resistance and mechanical stability. The contacts are crafted from phosphor bronze and feature high-quality Au (gold) plating in the contact area for superior conductivity and corrosion resistance. The solder tail is plated with a minimum of 80μ" tin, while the overall underplating consists of 50μ" nickel, ensuring robust connections and long-lasting reliability. With a current rating of 0.5A at 12V AC, these connectors are built to handle standard power requirements effectively. They offer a dielectric withstanding voltage of AC 500V for 1 minute and maintain an insulation resistance of at least 500MΩ, ensuring excellent electrical performance and safety. The maximum contact resistance is 100mΩ, providing reliable signal transmission with minimal interference.

Designed for durability, our SIM Card Socket Connectors are rated for 3000 cycles, making them ideal for high-use environments. They operate within a temperature range of -20°C to +60°C, ensuring reliable performance across various conditions. These connectors are a dependable choice for integrating SIM cards into electronic devices, offering high-quality connectivity and longevity.

SIM Card Socket Connectors Features:

Housing: Constructed from black LCP UL 94V-0 for excellent heat resistance and mechanical stability. Contacts: Made from phosphor bronze with high-quality Au (gold) plating, ensuring superior conductivity and corrosion resistance. Solder Tail: Plated with 80μ" tin and overall underplated with 50μ" nickel for robust connections and long-lasting reliability. Electrical Specifications: Current Rating: 0.5A at 12V AC, suitable for standard power requirements. Dielectric Withstanding Voltage: AC 500V for 1 minute. Insulation Resistance: At least 500MΩ. Contact Resistance: Maximum of 100mΩ, ensuring reliable signal transmission. Durability: Rated for 3000 cycles, operating within a temperature range of -20°C to +60°C.

These connectors provide reliable performance and are ideal for integrating SIM cards into electronic devices.
